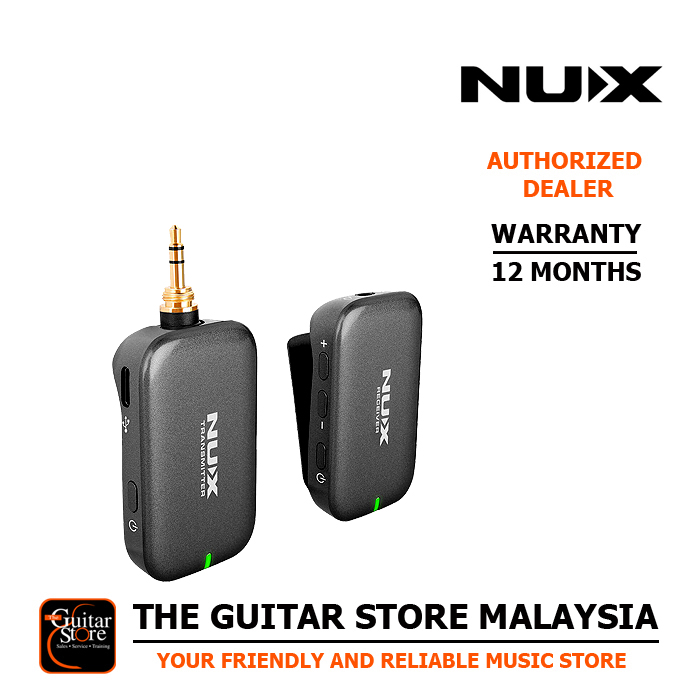

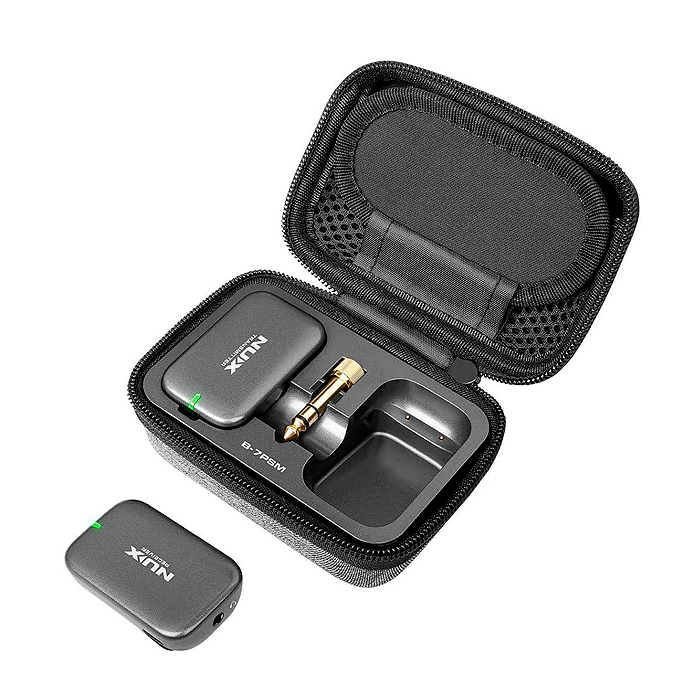

NUX B-7PSM Wireless In-Ear Monitoring Headphone System Stereo Audio Transmitting with Charging Case

The NUX B-7PSM is a wireless personal in-ear monitor system with automatic RF environment scan, 5.8GHz interference-free broadcasting frequency, and 24-bit / 40 kHz high-quality STEREO audio transmitting.

From any position. On any stage. Hear every note in detail with NUX B-7PSM in-ear monitoring system.

When coupling multiple B-7PSM systems, please turn on 1 set first, pair it, and then turn on the other sets sequentially.

Note: For best results the TX should be at least 1 meter above the ground, 2 meters away from Wi-Fi routers and wall or metal surfaces to minimize reflections.

            SPECIFICATIONS:

• Output Volume Adjustment: -64dB~0dB (0.5dB step)
• Operating Frequency Band: 5.8 GHz
• Operation Length: < 100 feet (30m) outdoor unobstructed, < 33 feet (10m) outdoor with obstructions
• Sampling Rate: 24bit / 40 kHz
• Frequency Response: 20~19kHz
• Latency: < 5.5ms
• Dynamic Range: 92 dB
• THD+ Noise: <0.6%@1kHz
• Built-in Battery Capacity (TX & RX): 450mAh / 3.7V
• Battery Running Time: > 4 hours
• Battery Charging Time: around 1.5 hours
• Power Consumption: TX <90mA，RX < 45mA
• TX Impedance: 3.5kΩ
• Maximum Input Level: 7.6Vpp (8.6dBV or 2.7Vrms)
• RX Suggestion Phone Impedance: 16~32Ω
• Maximum Output Power: 57mWrms (RLOAD =16Ω, 1 kHz).
