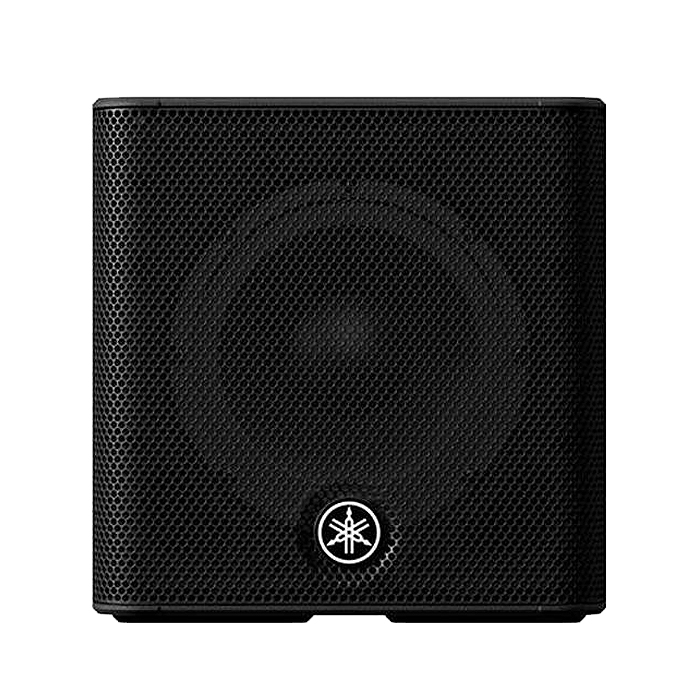

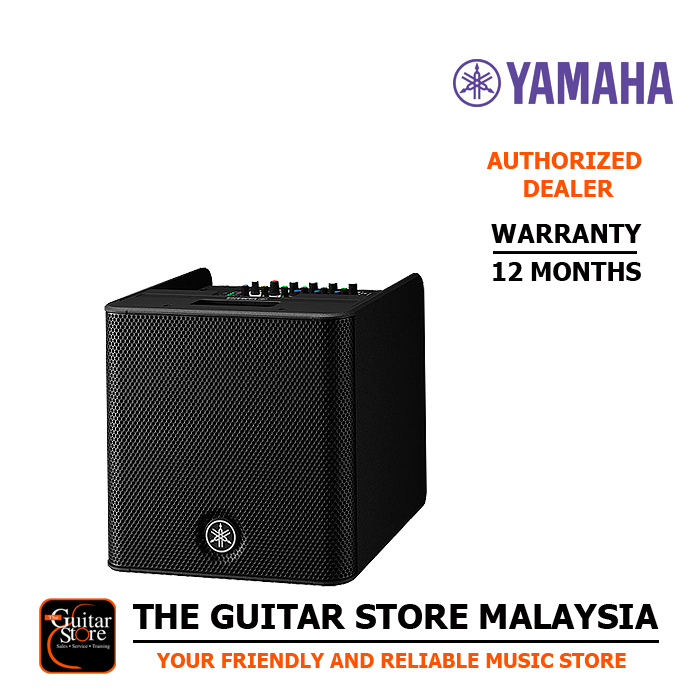

Yamaha StagePas 200BTR 180W Portable PA System

The Yamaha Stagepas 200BTR Battery-Powered Portable PA System is a compact, portable and battery-powered PA speaker. The first ever battery-powered PA system from Yamaha

            FEATURES:

• 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
• 1.4” HF + 8” LF high-quality coaxial compression driver

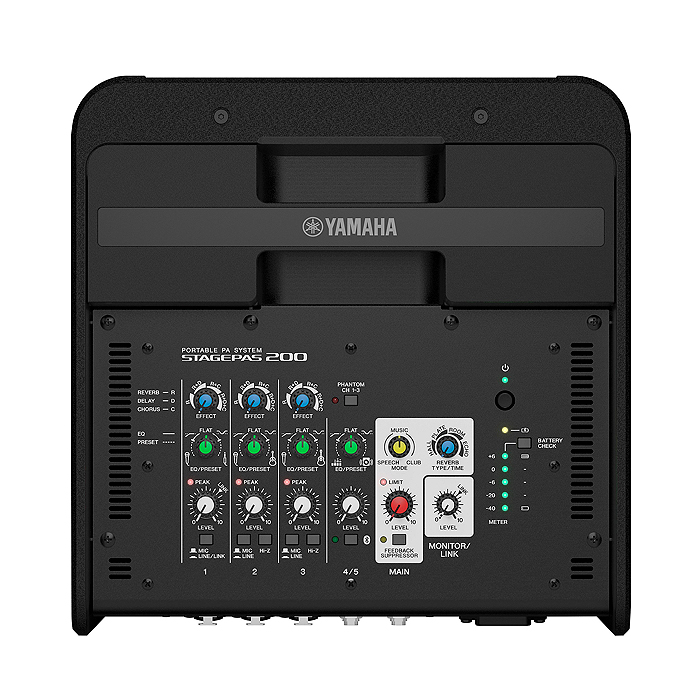

• 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
• Main output multi-band compressor “MODE”
• 1-knob EQ/preset for each channel
• High-grade SPX digital reverb (4 program, parameter control), delay, chorus
• Hi-Z input
• Equipped with link-out/monitor out
• Supplied rubber stand allows inclining at 30 or 60 degrees
• Compatible with audio streaming via Bluetooth
• Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
• Optional BTR-STP200 battery included

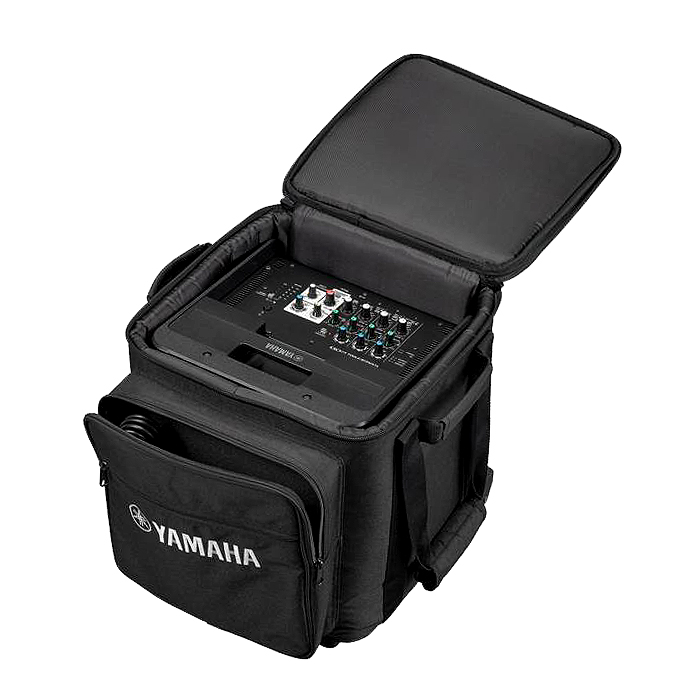

• Optional CASE-STP200 carry case for convenient carrying

            SPECIFICATIONS:

• Type : 2-way Bi-amp Powered Speaker with mixer
• Mixing channels : 5 (Mono x3 + Stereo x1)
• Input channel functions : Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
• Output channel functions : MODE (SPEECH/MUSIC/CLUB)
• Inputs : Mono x3 (mic/line) + Stereo/Mono x1 (line)

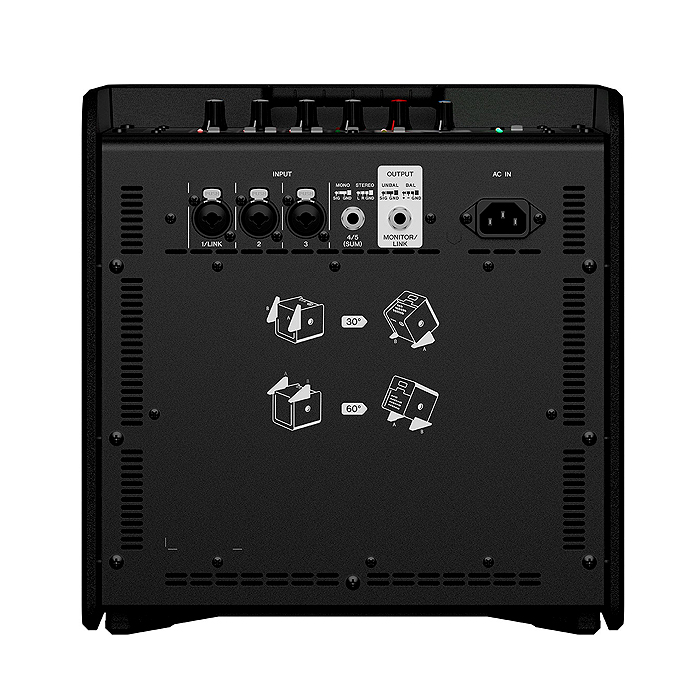

• Outputs : Monitor/Link out x1
• Bluetooth : Ver.5.0, A2DP (SBC, AAC), Class 1
• Control and others : STAGEPAS Controller (iOS/Android app)
• On-board processors : SPX digital reverb (4 program, parameter control), delay, chorus
• Speaker type : Coaxial speaker with compression driver
• Frequency range (-10dB) : 60 Hz – 20 kHz
• Coverage area : H90ﾟ x V90ﾟ
• Crossover : 2.0 kHz
• Maximum output level (1m; on axis) : 125 dB SPL *1
• Components : LF : 8″ Cone, 2.0″ voice coil | HF: 1″ throat compression driver, 1.4″ voice coil
• Amplifier class : Class-D
• Power rating : Dynamic : 180 W (LF: 150 W, HF: 30 W)
• Cooling : Natural convection (no fan)
• Power consumption : 10 W (Idle), 20 W (1/8 power)
• Power requirements : 100-240 V 50/60 Hz, or 29.6 Vdc *2
• Battery
  – Type : Rechargeable Lithium ion battery pack
  – Capacity : 79.92 Wh (2700 mAh, 29.6 V)
  – Operating Time : Maximum 10 hours, 1/16 power continuous 8 hours
  – Charging Time : Approx. 4 hours
• Cabinet material : Plastic (ABS)
• Handle : Top x1
• Pole socket : Φ35 mm x1 (Side)
• Floor Monitor Angle : 30° or 60°
• Dimensions (W x H x D) : 300 x 308 x 301 mm (11.8″ x 12.1″ x 11.9″)
• Weight : 12.5 kg (27.6 lbs) (Including battery)
• Accessories : Power cord x 1, Battery x 1
